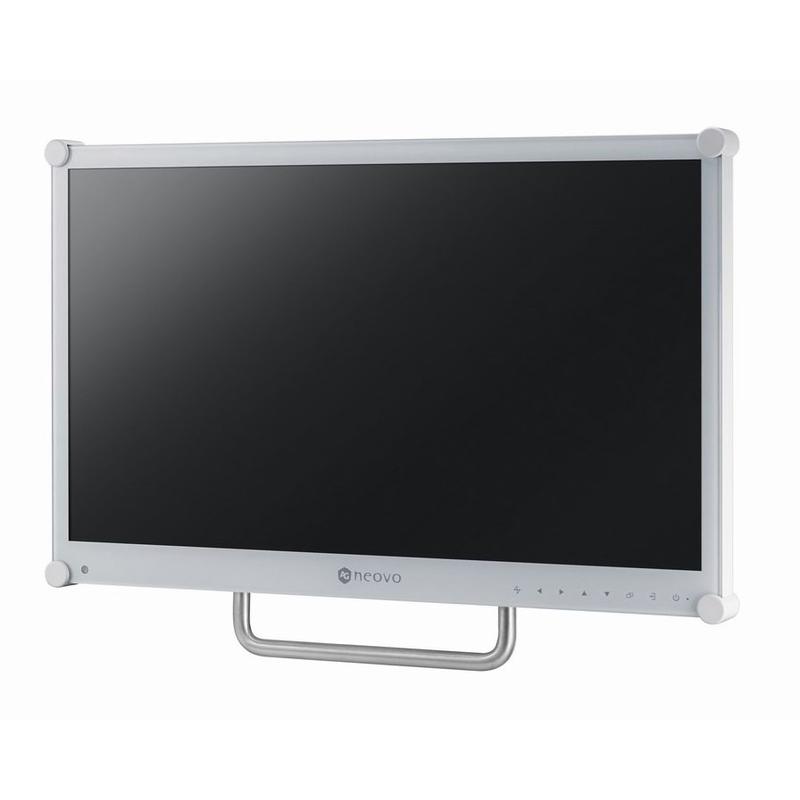

What Are Dental Monitors? Dental monitors are designed for viewing images like x-rays of teeth to help dentists identify problems. With a computer during treatments, the monitors allow entering data to the medical charts, scheduling patient appointments, and showing digital dental images and patient education videos. For safety concerns, dental monitors can withstand cleaning and disinfection between patients is essential. Knowing that providing a safe dental operatory environment to the patients is a dentist’s major concern; the DR-Series dental monitors are certified with EN/IEC 60601-1, ensuring a safe and reliable medical power supply by equipped with medical-grade power adapter and equipotential terminal connector. Along with NeoV™ Optical Hard Glass Screen and white metal casing, the dental monitors can be cleaned and disinfected with standard cleaning solutions for dental clinics. Besides, to accommodate the need to view x-ray films, the DR-Series dental monitors feature an X-ray illuminator mode, which allows dentists to diagnose without switching to other dedicated X-ray view box. From dental practice to patient education, the DR-Series is the best monitor for the dental office.
Versatility and Adaptability

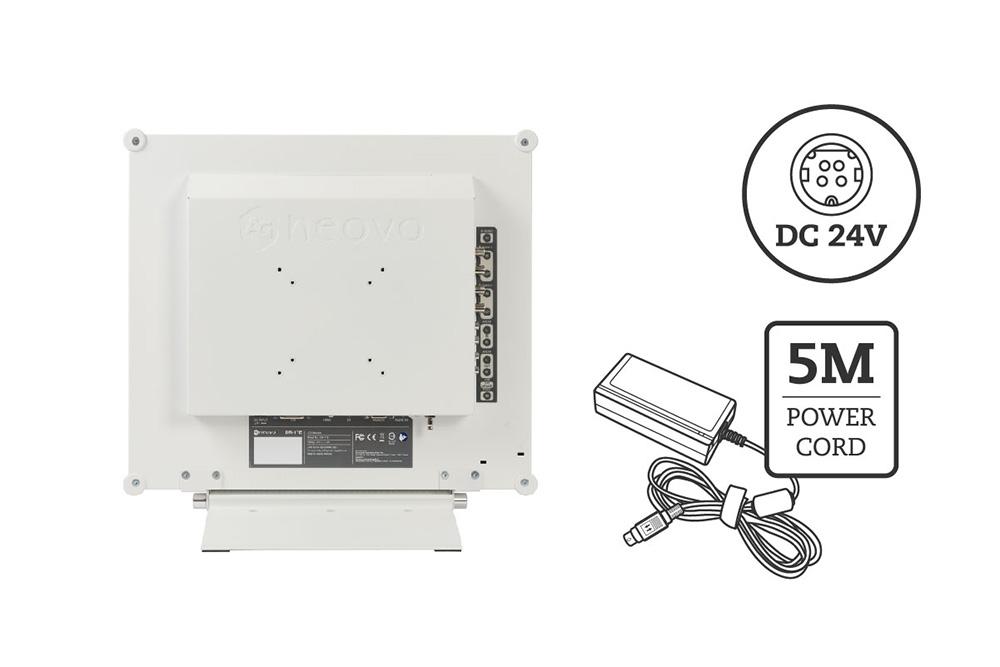

The DR-Series dental monitors are adaptable to fit every conceivable dental environment. Designed with DC 24V power supply, the displays are ideal for long-distance (up to 5 meters) cable management between dental equipment and monitors. Compatible with VESA standard mounts, the monitors can be mounted on a rotatable arm with handles for easy movement on a dental chair.

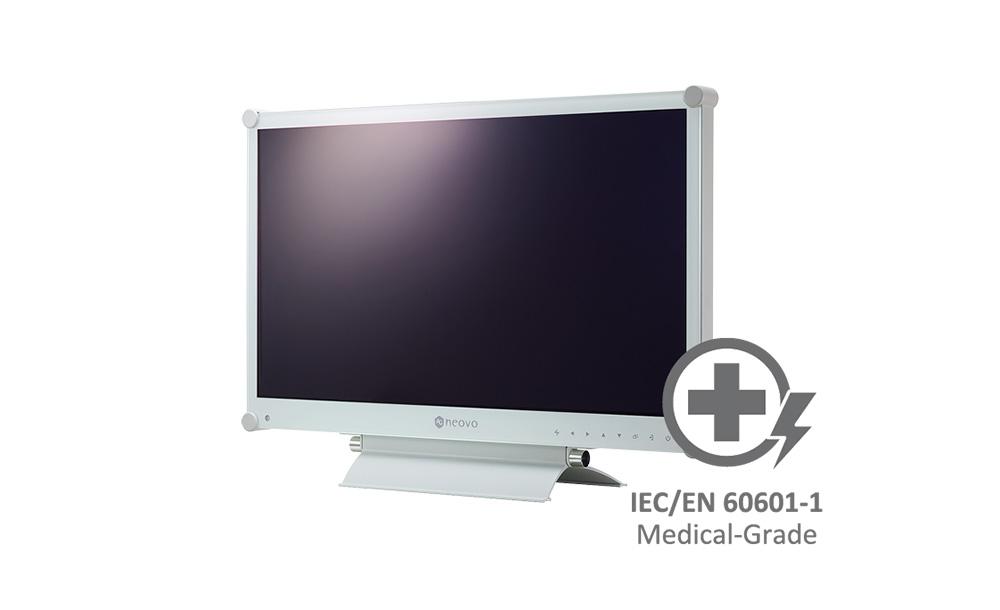

Medical Grade Safety Certification
The dental monitors with exceptionally clear images help dental professionals to be more effective with patients. With cutting-edge gamma correction, black-level alignment adjustability, and high contrast ratio, the DR-Series dental monitors can capture darker details and deliver premium medical images, thereby enhancing dental treatment quality.

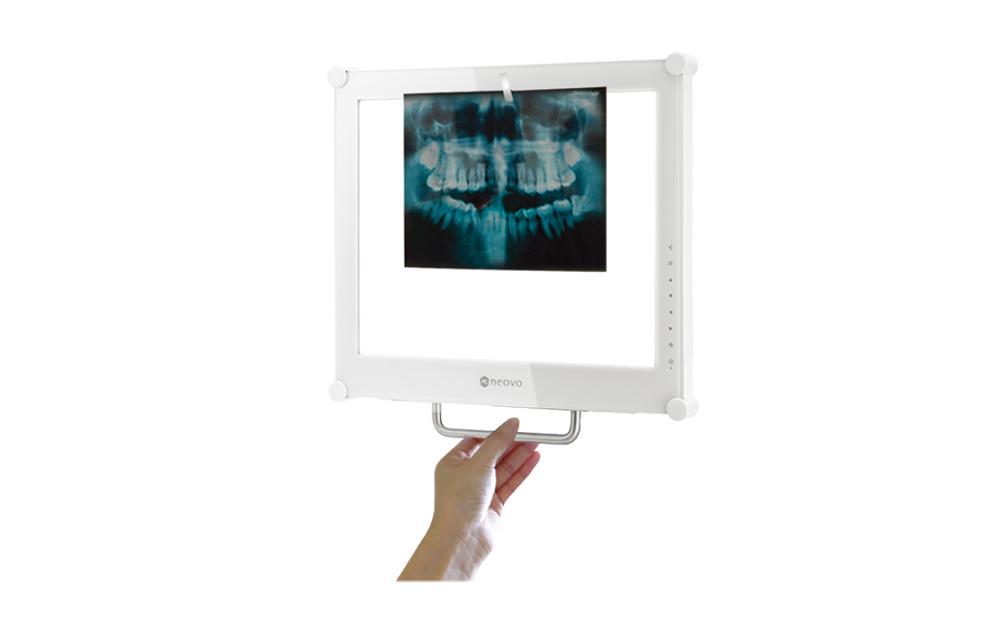

Easy X-ray Film Viewing
The DR-Series monitors feature a unique X-ray illuminator mode that allows dental professionals to easily view X-ray films without separately installing a dedicated X-ray view box — just switch in or out of illuminator mode on the on-board keypad. Both physical films and digitalized colour images are viewable on the same monitor, making the DR-Series an optimal operatory monitor for dentists.
Easy to Clean and Reliable Design
The anti-acid and anti-alkali coating treatment of NeoV™ Optical Hard Glass Screen ensures that the DR-Series dental monitors withstand cleaning and disinfection. Coupled with front-sided IP22 compliance and white metal casing, the DR-Series dental monitors are dust and waterproof and easy to detect contamination for any dental use.
|Képernyő panel méret||21,5" (546 mm)|
|Max. fényerő||250 cd/m2|
|Kontrasztarány||2 000 000:1 dinamikus|
|Látószög (H/V)||170°/160° (tipikus)|
|Frekvencia (H/V)||H - 30kHz-82kHz; V - 56Hz-75Hz|

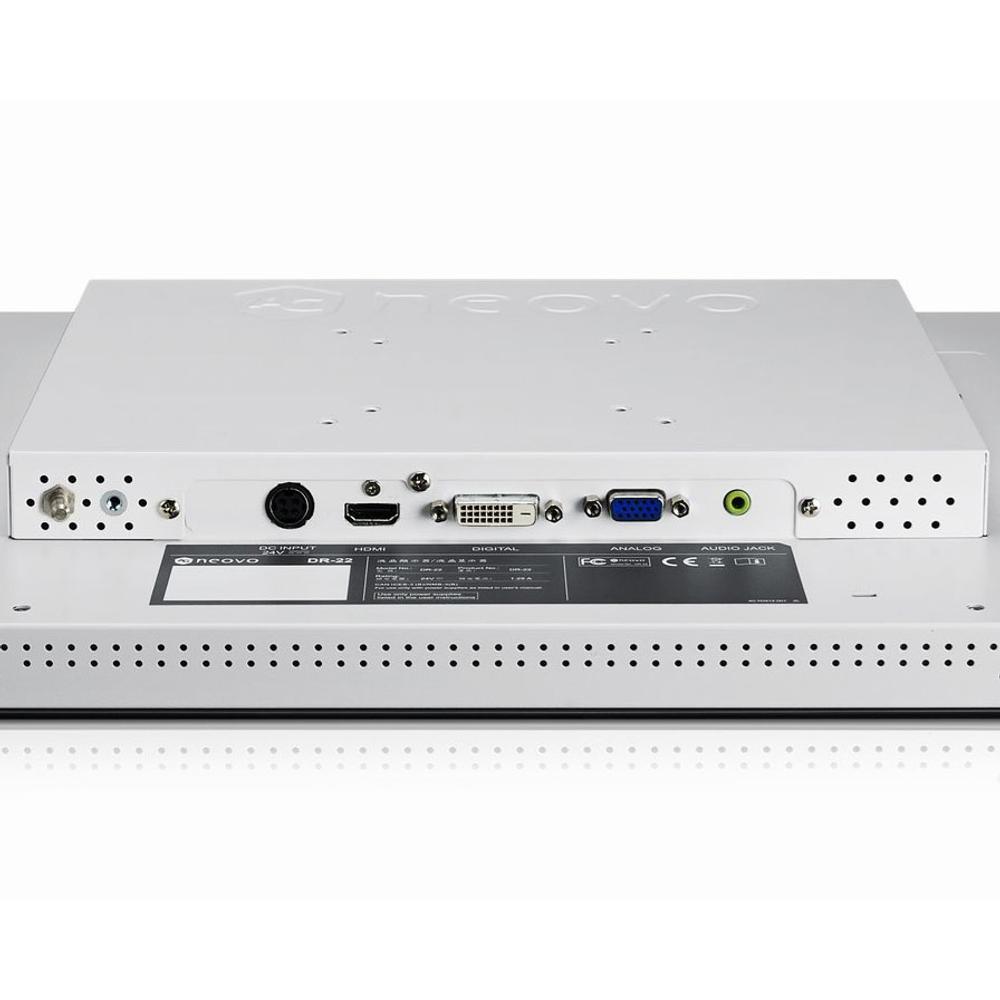

|Bemenet||analóg, DVI, S-Video, CVBS, HDMI|
|Speaker out||1,5W x 2|
|Hálózat||külső, DC 24V|
|Energia felhasználás||<18W - bekapcsolt állapotban; <0,5W - készenléti állapotban; <0,5W - kikapcsolva|
|Méret||513 x 369 x 155 mm|
